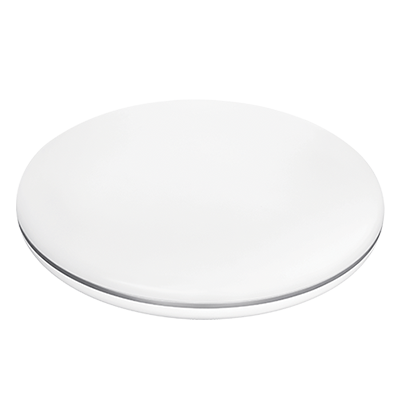

Moon is an elegant PC luminaire that is ideal for setting up in publicly accessible areas, such as circulation spaces, stairwells, hallways, passageways, metro and train stations, but can also be used in institutions and schools, residential areas.
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
85 lm/W | 90 lm/W | 95 lm/W | |||
M320 | 12W | 1050 lm | 1110 lm | 1130 lm | ±10% |
M320 | 18W | 1530 lm | 1580 lm | 1660 lm | ±10% |
M320 | 28W | 2550 lm | 2700 lm | 2750 lm | ±10% |

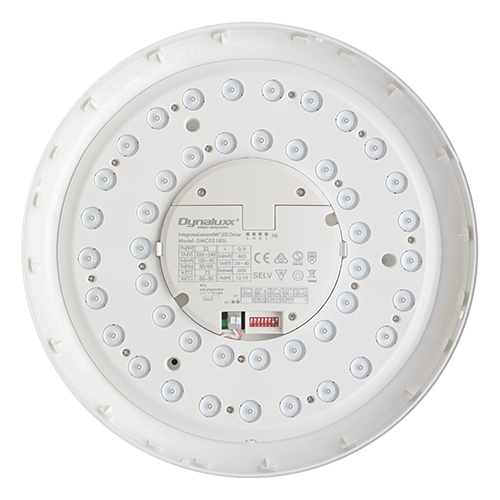

LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.

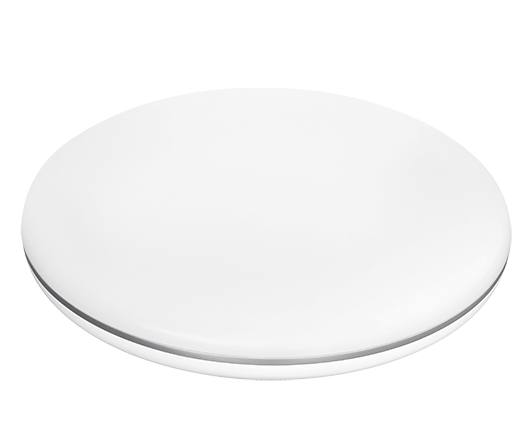

Surface Mounted |

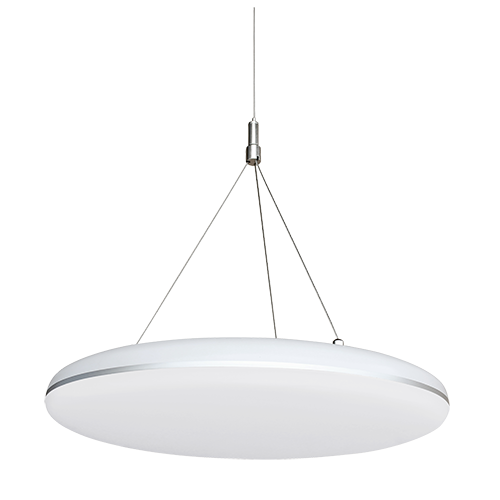

Suspended Mounted |
Other accessories:
PC Mounting Box (for side wiring) | Metal emergency Box (for emergency kit) |
 |  |
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220~240VAC | >80 | >0.9 | 3 | 120° | -20℃ ~ +40℃ | IP54 / IK10 | Polycarbonate | II |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 50,000h | L70B50: 103,000h / L80B10: 54,000h | EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 | 200lm ~ 400lm | 3h Duration |
