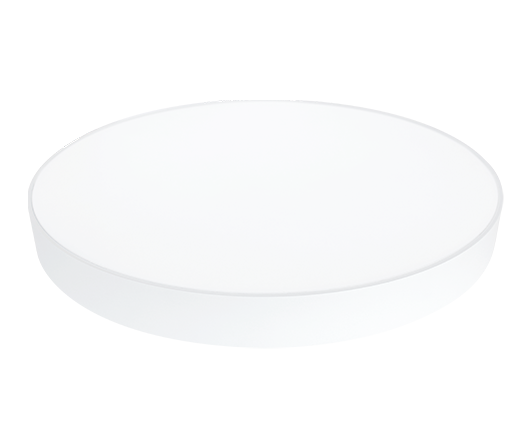

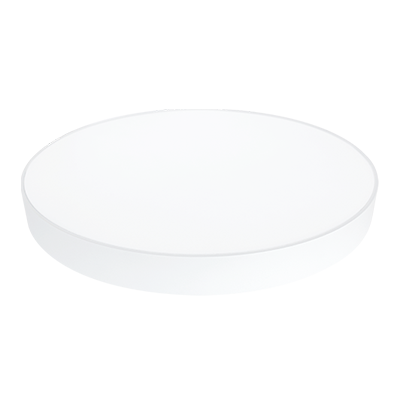

Aurora is a stylish PC luminaire with a slim profile ensuring its modern look. It is ideal for setting up in publicly accessible areas, such as stairwells, hallways, passageways, metro and train stations, and can also be used in institutions and schools, residential areas.
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
105 lm/W | 110 lm/W | 115 lm/W | |||
A320 | 10W | 1090 lm | 1126 lm | 1200 lm | ±10% |
A320 | 18W | 2010 lm | 2050 lm | 2120 lm | ±10% |
A320 | 22W | 2400 lm | 2470 lm | 2540 lm | ±10% |
A320 | 28W | 2970 lm | 3020 lm | 3070 lm | ±10% |
LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220~240VAC | >80 | >0.9 | 3 | 120° | -20℃~+40℃ | IP54/IK10 | Polycarbonate | II |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 50,000h | L70B50: 125,000h / L80B10: 65,000h | EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 | 200lm~400lm | 3h Duration |
Aurora is a stylish PC luminaire with a slim profile ensuring its modern look. It is ideal for setting up in publicly accessible areas, such as stairwells, hallways, passageways, metro and train stations, and can also be used in institutions and schools, residential areas.
