Right time, right place and the right amount of light! Daylight harvest is also widely referred to as Daylight Regulating or Daylight Interaction. The daylight sensor measures the available surrounding natural light and calculates how much artificial light is needed to reach the target lux level. With Koolmesh Bluetooth APP, you can easily do Daylight Harvest Quick Setup, or Advanced Setup to customize your own profile. |
Simply tick the checkbox to represent the luminaire's location against window position. |
|

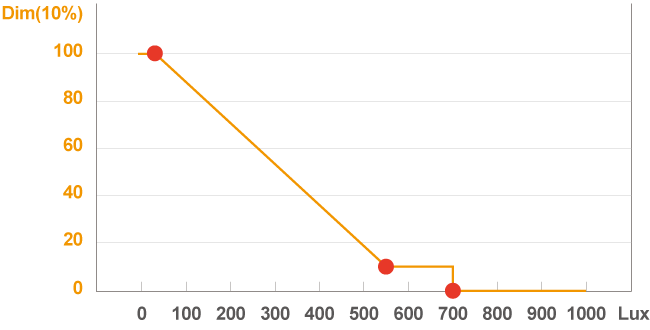

Lux Threshold for Max. Brightness Output: (30 Lux → 100%) | |
Daylight Threshold: (550 Lux → 10%) |  |
Lux OFF Value: (700 Lux → 0%) | |
 |
1. When the ambient lux level is less than (550 Lux), the luminaire's dimming level is (10%). | ||
2. When the ambient lux level changes between (30 Lux) to (550 Lux), the luminaire's dimming level will change from (100%) to (10%) accordingly. | ||
3. When the ambient lux level changes between (550 Lux) to (700 Lux), the luminaire's dimming level will stay at (10%). | ||
4. When the ambient lux level is more than (700 Lux), the luminaire will remain OFF. |
