Dana D290

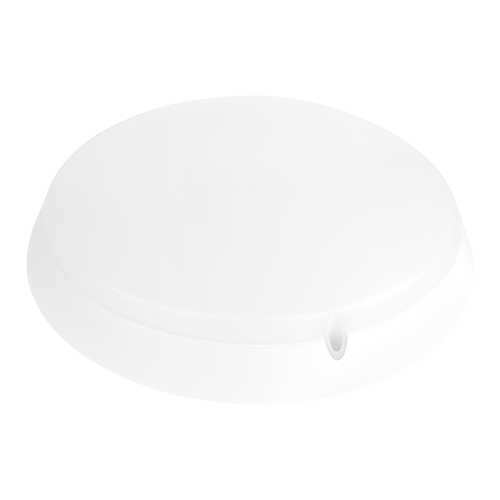

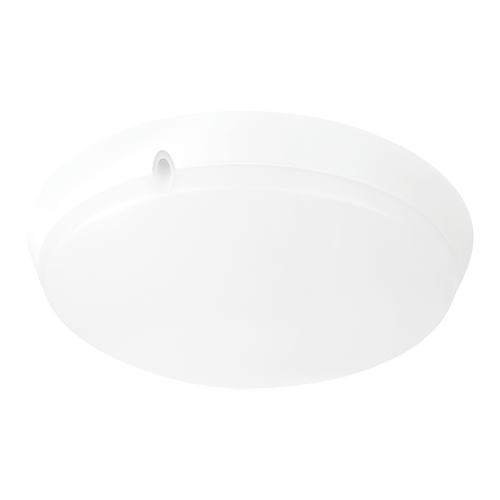

Dana is a domed PC luminaire with a focus on anti-ligature design. It is intended for circulation routes, pedestrian path, corridor, staircases, utility rooms, balconies and terraces, residential, bathrooms, etc.

网站产品尺寸图_4 Dana.png

Model

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     95 lm/W

     100 lm/W

     105 lm/W

D290-S

12W

1080 lm

1116 lm

1140 lm

±10%

18W

1620 lm

1674 lm

1710 lm

±10%

20W

1800 lm

1860 lm

1900 lm

±10%

     D290-B

12W

1176 lm

1236 lm

1260 lm

±10%

18W

1764 lm

1854 lm

1890 lm

±10%

20W

2156 lm

2266 lm

2310 lm

±10%


D290-S means LEDs on the side; D290-B means LEDs on the bottom.

LED Type: SMD2835

Lumen above is based on standard basic on/off version. For other functions, lumen may be different.

配光曲线图_4 Dana.png

D290 Installation_画板 1 副本 3.png



Input Voltage CRI Power Factor SDCM Beam Angle Operation Temp. IP/IK Fitting Material Class
220-240VAC >80 >0.9 3 120° -20°C~+40°C IP65/IK10 Polycarbonate II
Standard Lifespan Premium Lifespan Standard Emergency Lumen Battery
L70B50: 50,000h L70B50: 125,000h / L80B10: 65,000h EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 200lm~400lm 3h Duration

What you can customize

Lable / Box Higher Lumen Output Colour Temperature Selectable Power Selectable LED Brand Driver / Sensor Brand Higher Glow-wire Test Anti-UV Housing Colour

Dana is a domed PC luminaire with a focus on anti-ligature design. It is intended for circulation routes, pedestrian path, corridor, staircases, utility rooms, balconies and terraces, residential, bathrooms, etc.
