Essential
LS-N-A(-B/-C) / LS-M / LSD-M

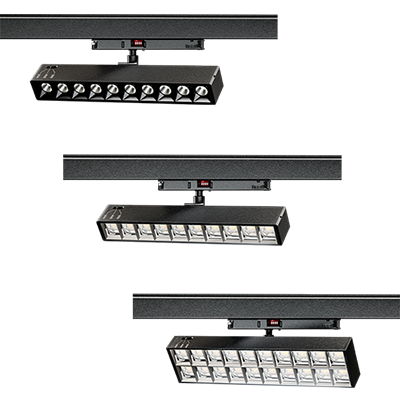

Essential, the track mounted linear light, with diversified optics, can be good substitution to track spot light.

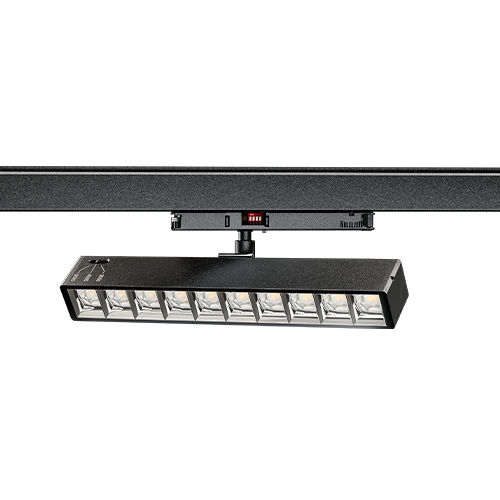

4 - Essential Track Light - 1 - 500 x 500 px
4 - Essential Track Light - 2 - 500 x 500 px

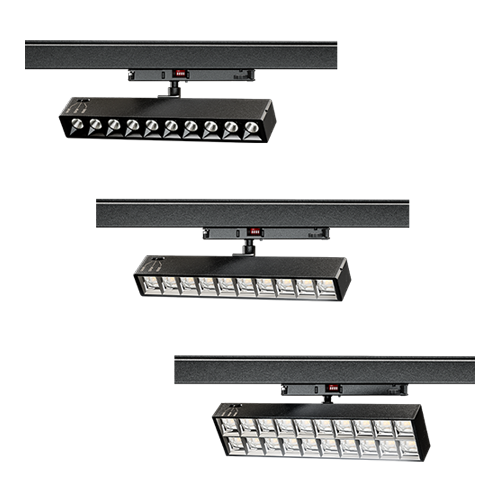

4 - Essential Track Light - 3 - 500 x 500 px
4 - Essential Track Light - 4 - 500 x 500 px
4 - Essential Track Light - 5 - 500 x 500 px
4 - Essential Track Light - 6 - 500 x 500 px
  • Download
  • Line Drawing
  • Power & Lumen
  • Light Distribution
  • Certificate & Standard

  Spec Sheet for Essential LS-N-A(-B/-C) / LS-M / LSD-M.pdf



Essential dimension_29 Essential.png


     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

      92 lm/W

     110 lm/W

      94 lm/W

4 - Essential Track Light - 2 - 500 x 500 px.png

15° / 24° /

38° / 50°


LS-N-A

<16

8W

736 lm

880 lm

752 lm

±10%

16W

1472 lm

1760 lm

1504 lm

±10%

4 - Essential Track Light - 3 - 500 x 500 px.png

40° x 40°

60° x 60°


LS-N-B<16

8W

736 lm880 lm752 lm

±10%

16W

1472 lm1760 lm1504 lm

±10%

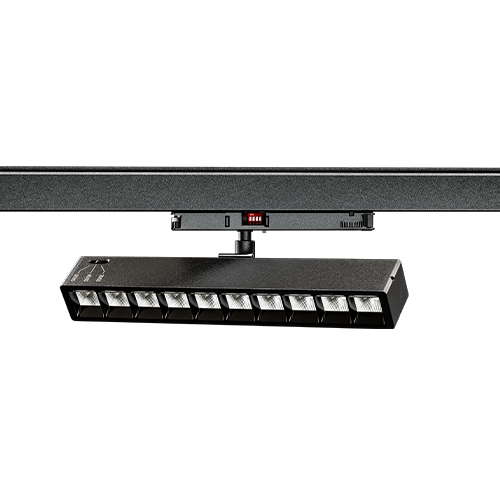

4 - Essential Track Light - 4 - 500 x 500 px.png

35° x 75°


LS-N-C<16

8W

736 lm880 lm752 lm

±10%

16W

1472 lm1760 lm1504 lm

±10%



     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

      92 lm/W

     110 lm/W

      94 lm/W

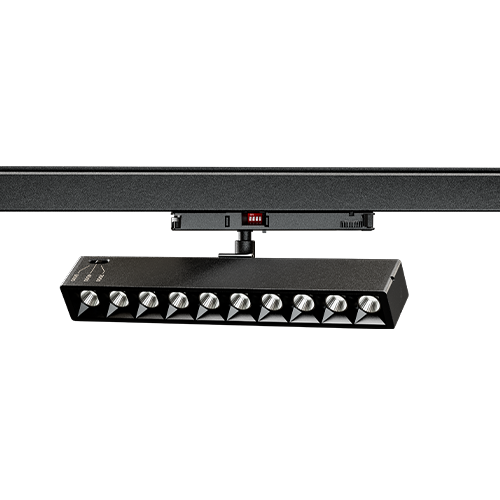

4 - Essential Track Light - 5 - 500 x 500 px.png

70°


LS-M

<19

8W

736 lm

880 lm

752 lm

±10%

16W

1472 lm

1760 lm

1504 lm

±10%



     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     115 lm/W

     128 lm/W

     120 lm/W

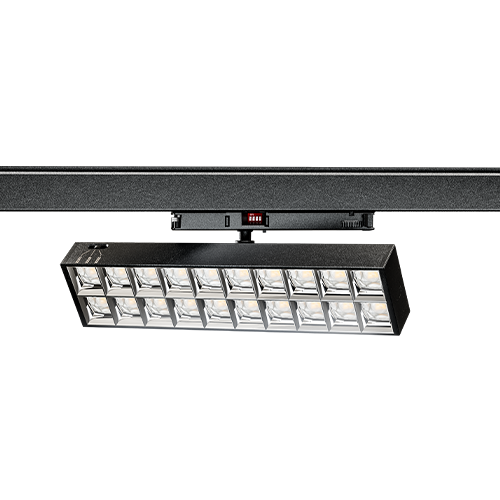

4 - Essential Track Light - 6 - 500 x 500 px.png

70°


LSD-M

<19

12W

1380 lm

1536 lm

1440 lm

±10%

24W

2760 lm

3072 lm

2800 lm

±10%



LED Type: SMD2835

Lumen above is based on standard basic on/off version. For other functions, lumen may be different.

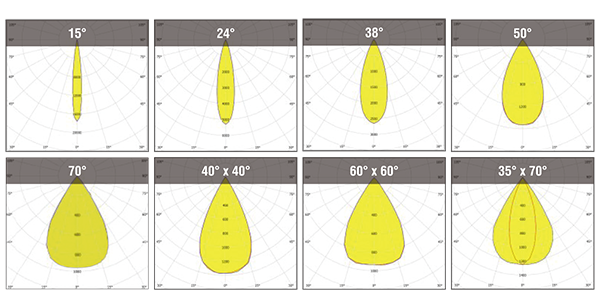

Essential light distribution_27 Essential.png


Input Voltage CRI Power Factor SDCM Beam Angle Operation Temp. IP/IK Fitting Material Class
220~240VAC >80 >0.9 3 15° / 24° / 38° / 50° / 70° / 40° x 40° / 60° x 60° / 35° x 70° -20℃~+40℃ IP20 Cast Aluminum II
Standard Lifespan Premium Lifespan Standard Emergency Lumen Battery
L70B50: 122,000h / L80B10: 70,000h L70B50: 176,000h / L80B10: 95,000h EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 200lm~400lm 3h Duration

What you can customize

Lable / Box Higher Lumen Output Colour Temperature Selectable Power Selectable LED Brand Driver / Sensor Brand Higher Glow-wire Test Colour

Essential, the track mounted linear light, with diversified optics, can be good substitution to track spot light.
