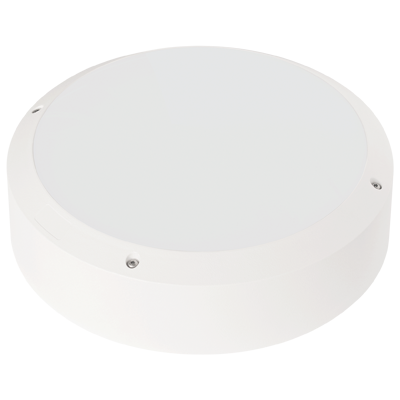

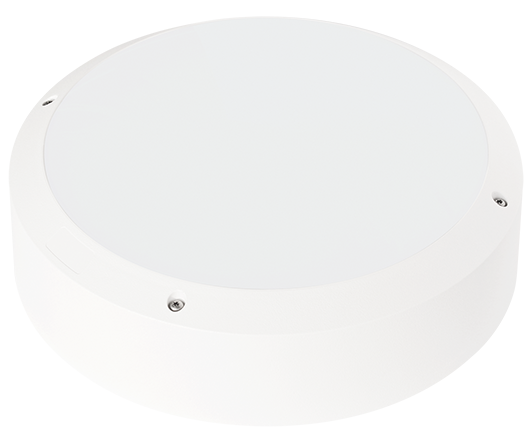

Venus V290 / V350

Venus is a robust PC luminaire with strong & durable construction that satisfies the requirements of demanding environment. It is an ideal reinforcement for common access road, circulation spaces, hallways, stairwells, corridors, walkways, bathrooms, covered car parks and garages, technical rooms, balconies and terraces.

网站产品尺寸图_5 Venus.png

     Model

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     85 lm/W

     90 lm/W

     95 lm/W

V290

18W

1550 lm

1650 lm

1750 lm

±10%

V350

28W

2250 lm

2400 lm

2500 lm

±10%


LED Type: SMD2835

Lumen above is based on standard basic on/off version. For other functions, lumen may be different.

配光曲线图_5 Venus.png

V290 Installation_画板 1 副本 3.png

CE RoHS ENEC SAA_画板 1 副本 5.png

Input Voltage CRI Power Factor SDCM Beam Angle Operation Temp. IP/IK Fitting Material Class
220-240VAC >80 >0.9 3 120° -20°C~+40°C IP65/IK10 Polycarbonate II
Standard Lifespan Premium Lifespan Standard Emergency Lumen Battery
L70B50: 50,000h L70B50: 125,000h / L80B10: 65,000h EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 200lm~400lm 3h Duration

What you can customize

Lable / Box Higher Lumen Output Colour Temperature Selectable Power Selectable LED Brand Driver / Sensor Brand Higher Glow-wire Test Anti-UV Housing Colour

Venus is a robust PC luminaire with strong & durable construction that satisfies the requirements of demanding environment. It is an ideal reinforcement for common access road, circulation spaces, hallways, stairwells, corridors, walkways, bathrooms, covered car parks and garages, technical rooms, balconies and terraces.
