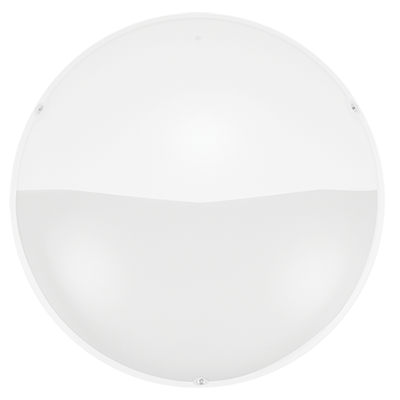

Doris W is the asymmetric PC wall luminarie, ideally used for stair, corridor, or aisle.
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
108 lm/W | 113 lm/W | 118 lm/W | |||
DW320 | 18W | 1944 lm | 2034 lm | 2070 lm | ±10% |
DW320 | 24W | 2520 lm | 2640 lm | 2688 lm | ±10% |
LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220~240VAC | >80 | >0.9 | 3 | 90° x 60° | -20℃~+40℃ | IP65/IK10 | Polycarbonate | II |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 76,000h | N/A | EN60598-2-1 / EN55015 / EN62778 | N/A | N/A |
