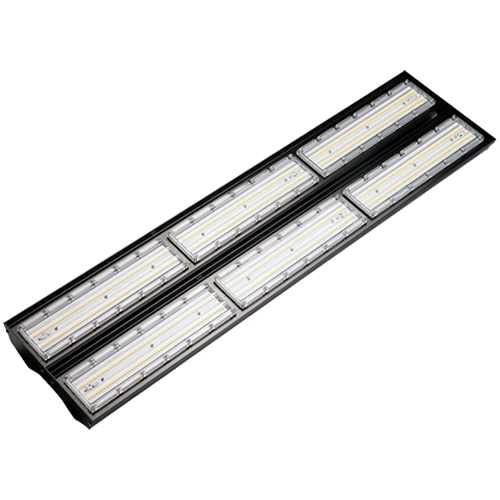

Libra, the linear highbay light, comes in six different versions with various beam angles, is perfect for applications like warehouse, tunnel, or storage rack aisle.
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
145 lm/W | 150 lm/W | 155 lm/W | |||
Libra-50-000 | 50W | 7250 lm | 7500 lm | 7750 lm | ±10% |
| Libra-100-000 | 100W | 14500 lm | 15000 lm | 15500 lm | ±10% |
| Libra-150-000 | 150W | 21750 lm | 22500 lm | 23250 lm | ±10% |
Libra-200-000 | 200W | 29000 lm | 30000 lm | 31000 lm | ±10% |
| Libra-240-000 | 240W | 34800 lm | 36000 lm | 37200 lm | ±10% |
| Libra-300-000 | 300W | 43500 lm | 45000 lm | 46500 lm | ±10% |
LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220~240VAC | >80 | >0.9 | 3 | 25° / 45° / 60° / 90° / 120° | -20℃ ~ +40℃ | IP65 | Cast Aluminum | I |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 50,000h | N/A | EN60598-2-1 / EN55015 / EN62778 | N/A | N/A |
Libra, the linear highbay light, comes in six different versions with various beam angles, is perfect for applications like warehouse, tunnel, or storage rack aisle.
